M12 male 0° / M12 female 0° A-cod.
Produktet kan afvige fra billedet

M12 male 0° / M12 female 0° A-cod.

PUR 4x0.34 bk UL/CSA+drag ch. 5m
Art. nr.: 7000-40021-6340500
Alternative varer:    7000-40021-6340600
Vægt: 0.166 kg
Tilgængelig
 Produktsammenligning
Listepris pr. Stk:

Du vil måske også kunne lide


Male straight – female straight

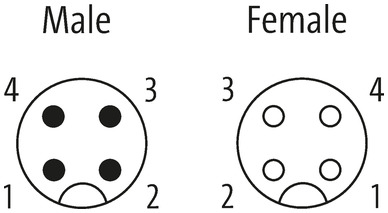

M12 – M12, 4-pole
Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Approvals
Approvals
Approvals
Approvals

* only for products with UL/CSA approved cable

Form
Form 40021
Technical Data
Operating voltage max. 250 V AC/DC
Operating voltage (only UL listed) max. 30 V AC/DC
Rated surge voltage 2.5 kV
Operating current per contact max. 4 A
Material group IEC 60664-1, category I
Coding A-coded
Locking of ports Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Compression gland M12 (SW13)
Protection IP65, IP66K, IP67 inserted and tightened (EN 60529)
Material PUR
Locking material Zinc die casting, matte nickel plated
suitable for corrugated tube (internal Ø) 10 mm
General data
Standards DIN EN 61076-2-101 (M12)
Pollution Degree 3
Temperature range -25...+85 °C, depending on cable quality
Cables
Cable identification 634
Cable Type 3 (PUR)
Approval (cable) cURus (AWM-Style 20549/10493); CE conform
Cable weight [g/m] 36,3 g
Material (wire) Cu wire, bare
Resistor (core) max. 57 Ω/km (20 °C)
Single wire Ø (core) 0.1 mm
Construction (core) 42× 0.1 mm (multi-strand wire class 6)
Diameter (core) 4× 0.34 mm²
AWG similar to AWG 22
Material (wire isolation) PP
Material property (wire isolation) CFC-, halogen-, cadmium-, silicone- and lead-free
Shore hardness (wire isolation) 70 ±5 D
Wire-Ø incl. isolation 1.25 mm ±5%
Color/numbering of wires br, bk, bl, wh
Stranding combination 4 wires twisted
Shield no
Material (jacket) PUR
Material property (jacket) CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Shore hardness (jacket) 90 ±5 A
Outer-Ø (jacket) 4.5 mm ±5%
Color (jacket) black
chemical resistance good resistance to oil, gasoline and chemicals (EN 60811-404)
thermal resistance flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Nominal voltage 300 V AC
Test voltage 2500 V AC
Current load capacity to DIN VDE 0298-4
Temperature range (fixed) -40...+80 °C, (+90 °C at max. 10 000 operating hours)
Temperature range (mobile) -25...+80 °C, (+90 °C at max. 10 000 operating hours)
Bend radius (fixed) 5× outer Ø
Bend radius (moving) 10× outer Ø
No. of bending cycles (C-track) max. 10 Mio. (25 °C)
Travel speed (C-track) max. 3 m/s
Acceleration (C-track) max. 10 m/s²
Torsion stress ±180°/m
No. of torsion cycles max. 2 Mio. (25 °C)
Torsion speed 35 cycles/min
Commercial data
country of origin CZ
customs tariff number 85444290
EAN 4048879183352
eClass 27279218
Pakke-enhed 1.000

Oplysninger vedrørende artikel:
  • Hent Datablad
  • Hent Approval: CSA CA 7000-40021-xxxxxxx_080128-0-000_C6233-01_csa_z_b.pdf
  • Hent Approval: CSA US 7000-40021-xxxxxxx_080128-0-000_C6233-01_csau_z_b.pdf
  • Hent Certificate 7000-18001_ax_2_k.pdf
  • Hent Construction files: STP 7000-40021_stp_x_a.zip
  • Hent Information: Certificate of conformity Murrelektronik GmbH 14-11.20_(5) RoHS&REACh no exception_DoC_z_a.pdf
  • Hent Information: Certificate of conformity Murrelektronik GmbH 17-10.21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Hent Information: Certificate of conformity Murrelektronik GmbH 15-12.20_(1) China RoHS 2 e_DoC_z_b.pdf
  • Hent Information: Certificate of conformity UKCA 7000-40001_01-08.19_uk_z_a.pdf
  • Hent Information: EU declaration of conformity 7000-40001_01-08.19_ce_z_b.pdf
