M12 Power male 0° L-cod. IDC  7000-P4391-0000000
Produktet kan afvige fra billedet

M12 Power male 0° L-cod. IDC

5-pol., 0,75 - 1,5mm², 5,8 - 13,5mm, shielded
Art. nr.: 7000-P4391-0000000
Alternative varer:    7000-P4591-0000000
Vægt: 0.078 kg
Country of origin:  RO
Tilgængelig
 Produktsammenligning
Listepris pr. Stk:
Tilføj Easy-Import-Export

Beskrivelse

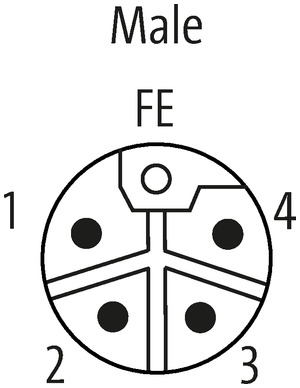

Male straight
M12, 5-pole
L-coded
Field-wireable
IDC terminals
0.75...1.5 mm²
Sealing range (cable Ø)
5.8...13.5 mm
The resistance to aggressive media should be individually tested for your application. Further details on request.

Form
Form P4391
Technical Data
Operating voltage max. 63 V DC
Operating current per contact max. 12 A
Coding L-coded
Mating cycles ≥ 500
Locking of ports Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Connection cross section max. 1.5 mm²
Sealing range (cable Ø) 5.8...13.5 mm
Protection IP65 and IP67 when plugged and screwed down (EN 60529)
Material Zinc die casting
suitable for corrugated tube (internal Ø) without
Compression gland M12 (SW17)
General data
Material contact surface Au
Temperature range -40...+85 °C
Material contact carrier PA
Product article number of manufacturer 7000-P4391-0000000

ECLASS-6.0 27279221
ECLASS-7.0 27440104
ECLASS-8.0 27440104
ECLASS-9.0 27440102
ECLASS-10.1 27440102
ECLASS-11.1 27440102
ECLASS-12.0 27440116
ETIM-5.0 EC001855

customs tariff number 85366990
GTIN 4048879682541
Pakke-enhed 1


Oplysninger vedrørende artikel:
  • Hent Produkt-PDF
  • Hent Construction files: STP 7000-P4391_stp_x_a.zip
  • Hent Document: Installation guide 7000-P4391_ina_2_01.pdf
  • Hent Information: Certificate of conformity Murrelektronik GmbH 14-11-20_(5) RoHS REACh no exception_DoC_z_a.pdf
  • Hent Information: Certificate of conformity Murrelektronik GmbH 04-02-23_(1) China RoHS 2 e_DoC_z_a.pdf
  • Hent Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
