M12 male 0° B-cod. with cable shielded  7000-14241-7990300
Produktet kan afvige fra billedet

M12 male 0° B-cod. with cable shielded

PUR 3x2x0.25 shielded vt 3m

Art. nr.: 7000-14241-7990300
Vægt: 0.246 kg
Country of origin:  CZ
Kontakt os for leveringsdato
 Produktsammenligning
Listepris pr. Stk:
Tilføj Easy-Import-Export

Beskrivelse


Interbus
Male straight
M12, 5-pole
B-coded
shielded
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Certificate
Certificate
Certificate
Certificate
Bus technologies

Cable length 3 m
Side 1
Tightening torque 0,6 Nm
Mounting method inserted, screwed
Family construction form M12
Thread M12 x 1
Coding B
Material PUR
No. of poles 5
Width across flats SW13
Degree of protection (EN IEC 60529) IP67
Electrical data | Supply
Operating voltage AC max. 60 V
Operating voltage DC max. 60 V
Current operating per contact max. 4 A
Installation | Connection
Mounting set M12 x 1
Device protection | Electrical
Additional condition protection degree inserted, screwed
Pollution Degree 3
Rated surge voltage 1,5 kV
Material group (IEC 60664-1) I
Mechanical data | Material data
Coating locking Nickeled
Coating of fitting nickel plated
Locking material Zinc die-casting
Material screw connection Zinc die-casting
Mechanical data | Mounting data
Mounting method inserted, screwed, Shaking protection
Environmental characteristics | Climatic
Operating temperature min. -25 °C
Operating temperature max. 85 °C
Additional condition temperature range depending on cable quality
Conformities, approvals, certificates
Product standard DIN EN 61076-2-101 (M12)

Cable
Outer Ø 7.7 mm ±5%
Cable identification 799
Approval (cable) Interbus (DIN 19258/EN50254/IEC 61158 conform)
Cable weight [g/m] 76,49 g
Material wire Cu wire, bare
Resistor (core) max. 96 Ω/km (20°C)
Single wire Ø (core) 0.1 mm
Construction (core) 32× 0.1 mm (multi-strand wire class 6)
Diameter (core) 3× (2× AWG24)
AWG similar to AWG 24
Material wire isolation PE
Shore hardness wire isolation 55 ±5 D
Wire-Ø incl. isolation 1.4 mm ±5%

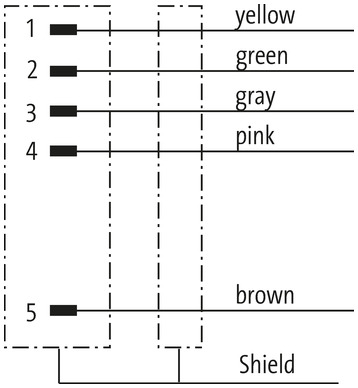

Color/numbering of wires (wh, br) + (gr, pk) + (gn, ye)
Stranding combination cores 0.25mm² twisted to 3 pairs
Shield yes
Shield (Type) Copper braid
Optical shield cover min. 85%
Material jacket PUR
Material property (jacket) CFC-, halogen- and cadmium-free, matt, low-adhesion, machine easy to process, abrasion-resistant
Shore hardness jacket 85 ±5 A
Outer-Ø (jacket) 7.7 mm ±5%
Color jacket violet
chemical resistance good resistance to oil, gasoline and chemicals (VDE 0472 Teil 803/VDE 0249)
Nominal voltage 250 V AC
Test voltage 1500 V (wire/wire); 1000 V (wire/shield)
Temperature range (fixed) -40...+70 °C
Temperature range (fixed) -40...+80 °C
Temperature range (mobile) -30...+70 °C
Temperature range (mobile) -30...+70 °C
Bend radius (fixed) 6× outer Ø
Bend radius (moving) 15× outer Ø
Bend radius (moving) 12× outer Ø
No. of bending cycles (C-track) max. 2 Mio. (25 °C)
Travel speed (C-track) max. 3 m/s
Acceleration (C-track) max. 3 m/s²
Material jacket PUR

ECLASS-6.0 27061801
ECLASS-6.1 27060307
ECLASS-7.0 27060307
ECLASS-8.0 27060307
ECLASS-9.0 27060307
ECLASS-10.1 27060307
ECLASS-11.1 27060307
ECLASS-12.0 27060307
ETIM-5.0 EC001855
customs tariff number 85444290
GTIN 4048879197687
Pakke-enhed 1


Oplysninger vedrørende artikel:
  • Produkt-PDF
  • Information: Certificate of conformity Murrelektronik GmbH 14-11-20_(5) RoHS REACh no exception_DoC_z_a.pdf (02)
  • Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf (01)
  • Information: Certificate of conformity Murrelektronik GmbH 04-02-23_(1) China RoHS 2 e_DoC_z_a.pdf (01)
  • Information: Certificate of conformity UKCA 7000-13061_08-09.19_uk_z_a.pdf (A)
  • Information: EU declaration of conformity 7000-13061_08-09.19_ce_z_d.pdf (D)
