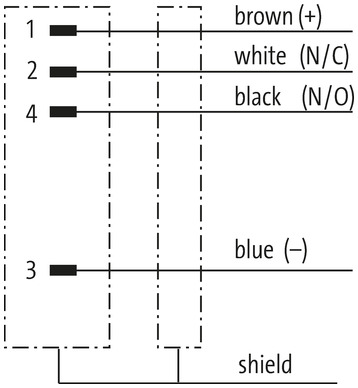

M12 male 90° A-cod. with cable shielded
PUR 4x0.34 shielded gy UL/CSA 3m
| Art. nr.: | 7000-13141-3350300 |
| Vægt: | 0.188 kg |
| Country of origin: | DE |
Kontakt os for leveringsdato
Beskrivelse
⚠ NOTICE ⚠
PRODUCT WILL BE DISCONTINUED BY JUNE 2023. PLEASE HAVE A LOOK AT THE ALTERNATIVE PRODUCTS.

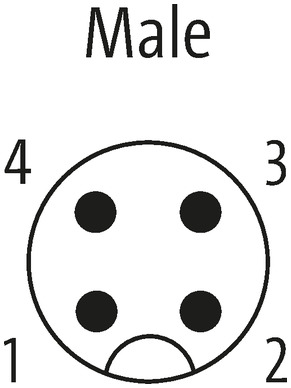

Male 90°
M12, 4-pole
shielded
A-coded
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Tekniske specifikationer
| Cable length | 3 m |
|---|
Side 1
| Tightening torque head 1 | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Coating contact head 1 | gold plated |
| Family form head 1 | M12 |
| Thread | M12 x 1 |
| Coding head 1 | A |
| Material contact | Copper alloy |
| Material head 1 | PUR |
| Number of poles head 1 | 4 |
| Width across flats head 1 | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
Side 2
| Stripping length (jacket) | 20 mm |
|---|---|
| Coating contact head 2 | gold plated |
Electrical data | Supply
| Operating voltage AC (UL-listed) | 30 V |
|---|---|
| Operating voltage AC max. | 60 V |
| Operating voltage DC (UL-listed) | 30 V |
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
Diagnostics
| Status indication LED | no |
|---|
Installation | Connection
| Stripping length (jacket) | 20 mm |
|---|---|
| Mounting set | M12 x 1 |
Device protection | Electrical
| Rated surge voltage | 1,5 kV |
|---|---|
| Material group (IEC 60664-1) | I |
| Protection degree additional condition | inserted, screwed |
| Pollution Degree | 3 |
Mechanical data | Material data
| Coating locking | Nickeled |
|---|---|
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
|---|
Environmental characteristics | Climatic
| Operating temperature min. (dynamic) | -20 °C |
|---|---|
| Min. operating temperature (static) | -25 °C |
| Operating temperature max. (dynamic) | 80 °C |
| Max. operating temperature (fixed) | 80 °C |
Conformities, approvals, certificates
| Product standard | DIN EN 61076-2-101 (M12) |
|---|
Kabeldata
Cable
| No./diameter of wires | 4× 0.34 mm² |
|---|---|
| Wire isolation | PP (br, wh, bl, bk) |
| Outer Ø | 5.9 mm ±5% |
| Cable identification | 335 |
| Cable Type | PUR-OB |
| Approval (cable) | UL (AWM-Style 20233/1992), CSA; CE conform |
| Cable weight [g/m] | 56,1 g |
| Material wire | Cu wire, bare |
| Resistor (core) | max. 52 Ω/km (20 °C) |
| Single wire Ø (core) | 0.1 mm |
| Diameter (core) | 4× 0.34 mm² |
| Material wire isolation | PP |
| Material property wire insulation | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Shore hardness wire isolation | 72 ±3 D |
| Wire-Ø incl. isolation | 1.55 mm ±5% |
| Color/numbering of wires | br, bk, bl, wh |
| Stranding combination | 4 wires twisted |
| Shield | yes |
| Shield (Type) | Copper braid |
| Optical shield cover | min. 85% |
| Material jacket | PUR |
| Shore hardness jacket | 85 ±3 A |
| Outer-Ø (jacket) | 5.9 mm ±5% |
| Color jacket | gray |
| Jacket Color | gray |
| chemical resistance | good resistance to oil, gasoline and chemicals (VDE 0472 Teil 803 Test B) |
| thermal resistance | flame retardant UL VW1, CSA FT1 |
| Nominal voltage | 300 V AC |
| Test voltage | 2000 V AC |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -20...+80 °C |
| Temperature range (mobile) | -20...+80 °C |
| Bend radius (fixed) | 10× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| Material jacket | PUR (UL/CSA) |
Classifications
| ECLASS-6.0 | 27279218 |
|---|---|
| ECLASS-6.1 | 27279218 |
| ECLASS-7.0 | 27279218 |
| ECLASS-8.0 | 27279218 |
| ECLASS-9.0 | 27060311 |
| ECLASS-10.1 | 27060311 |
| ECLASS-11.1 | 27060311 |
| ECLASS-12.0 | 27060311 |
| ETIM-5.0 | EC001855 |
Commercial data
| customs tariff number | 85444290 |
|---|---|
| GTIN | 4048879759038 |
| Pakke-enhed | 1 |
