M8 female 0° with cable
PUR 8x0.14 bk 15m
| Art. nr.: | 7000-08961-6961500 |
| Alternative varer: | |
| Vægt: | 0.549 kg |
| Country of origin: | CZ |
Tilgængelig
Beskrivelse

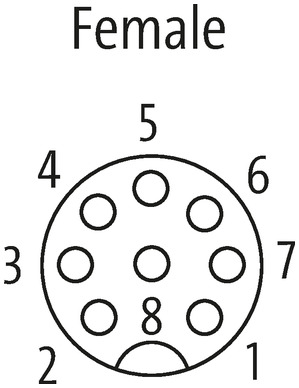

Female straight
M8, 8-pole
without cable sleeves
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Tekniske specifikationer
| Cable length | 15 m |
|---|
Side 1
| Tightening torque | 0,4 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Family construction form | M8 |
| Thread | M8 x 1 |
| suitable for corrugated tube (internal Ø) | 8 mm |
| Coding | A |
| Material | PUR |
| Width across flats | SW9 |
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data | Supply
| Operating voltage AC max. | 30 V |
|---|---|
| Operating voltage DC max. | 30 V |
| Current operating per contact max. | 1,5 A |
Installation | Connection
| Mounting set | M8 x 1 |
|---|
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
Mechanical data | Material data
| Coating locking | Nickeled |
|---|---|
| Coating of fitting | nickel plated |
| Material gasket | NBR |
| Locking material | Zinc die-casting |
| Material screw connection | Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
|---|
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 80 °C |
| Additional condition temperature range | depending on cable quality |
Kabeldata
General data | Cable
| Cable identification | 696 |
|---|---|
| Jacket Color | black |
Structure | Cable
| Amount stranding | 1 |
|---|---|
| Stranding | 8 wires around Filler twisted |

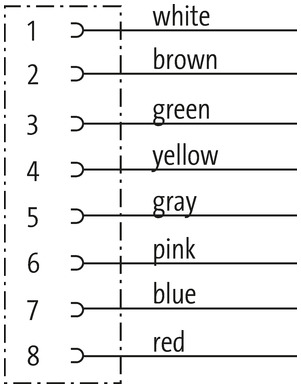

| wire arrangement | white, brown, green, yellow, gray, pink, blue, red |
Mechanical data | Cable
| Travel speed (C-track) | 2 Mio. @ 25 °C |
|---|---|
| Material jacket | PUR |
| Outer-diameter (jacket) | 5,5 mm |
| Tolerance outer diameter (sheath) | ± 5 % |
| Material wire insulation | PP |
| Amount wires | 8 |
| Outer diameter insulation | 1,07 mm |
| Outer diameter tolerance core insulation | ± 5 % |
| Amount strands (wire) | 18 |
| Diameter of single wires | 0,1 mm |
| Conductor crosssection (wire) | 0,14 mm² |
| Material conductor wire | Stranded copper wire, bare |
| Conductor type (wire) | strand class 6 |
Electrical data | Cable
| Nominal voltage AC max. | 300 V |
|---|---|
| Current load capacity (standard) | to DIN VDE 0298-4 |
| Current load capacity min. wire | 4,8 A |
| Electrical resistance line constant wire | 78 Ω/km @ 20 °C |
| AC withstand voltage (wire - wire) | 3 kV @ 60 s |
| Power frequency withstand voltage (wire - jacket) | 3 kV @ 60 s |
Temperature range | Cable
| Min. operating temperature (static) | -30 °C |
|---|---|
| Max. operating temperature (fixed) | 80 °C |
| Operating temperature min. (dynamic) | -15 °C |
| Operating temperature max. (dynamic) | 80 °C |
Resistances | Cable
| Flame resistance | IEC 60332-2-2 | UL 1581 § 1100 FT2 | UL 1581 § 1090 |
|---|---|
| chemical resistance | Good, application-related testing |
| Gasoline resistance | Good, application-related testing |
| Oil resistance | Good, application-related testing | DIN EN 60811-404 |
Installation | Cable
| Bending radius (fixed) | 6 x Outer diameter |
|---|
Commercial data
| ECLASS-6.0 | 27279218 |
|---|---|
| ECLASS-6.1 | 27279218 |
| ECLASS-7.0 | 27279218 |
| ECLASS-8.0 | 27279218 |
| ECLASS-9.0 | 27060311 |
| ECLASS-10.1 | 27060311 |
| ECLASS-11.1 | 27060311 |
| ECLASS-12.0 | 27060311 |
| ETIM-5.0 | EC001855 |
| customs tariff number | 85444290 |
| GTIN | 4065909002025 |
