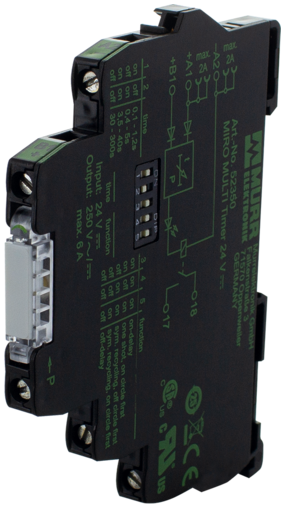

MIRO MULTI TIMER 24VDC-1S  52350
Produktet kan afvige fra billedet

MIRO MULTI TIMER 24VDC-1S

MIRO 6.2 MULTI-TIMER 24VDC-1S
Art. nr.: 52350
Alternative varer:    6652350
Vægt: 0.036 kg
Country of origin:  CZ
Tilgængelig
 Produktsammenligning
Listepris pr. Stk:
Tilføj Easy-Import-Export

Beskrivelse

Relay output
Impulse expansion: 0.1...300 s
Screw terminals
Certificate
Certificate
Certificate
Certificate

Input
Input voltage 24 V DC (+10 -15%) input A
Control voltage 24 V DC (+10 -15%) input B
Control current 5 mA (input B)
Input current 20 mA (input A)
Output
Output voltage max. 250 V AC/DC
Min. load current 100 mA (12 V DC)
Output rating max. 1500 VA/120 W
Contact material Ag Sn O2
Energize/release/contact bounce time 10/15/1.5 ms
Switching frequency max. 10 Hz
Output current max. 6 A
General data
Mounting method DIN-rail mountable (EN 60715)
Temperature range -25...+60 °C
Test isolation voltage 4 kV; safe separation (EN 60947-1)
Mech./ elect. life 20 000 000 switching cycles/load dependent
Dimensions H×W×D 91×6.2×71 mm

ECLASS-6.0 27210990
ECLASS-6.1 27371790
ECLASS-7.0 27371790
ECLASS-8.0 27371605
ECLASS-9.0 27371605
ECLASS-10.1 27371605
ECLASS-11.1 27371605
ECLASS-12.0 27371605
ETIM-5.0 EC001439
customs tariff number 85364190
EAN 4048879026956
Pakke-enhed 1


Oplysninger vedrørende artikel:
  • Hent Produkt-PDF
  • Hent Approval: CSA CA 52350_080128-0-000_C3211-07_csa_z_d.pdf
  • Hent Approval: CSA US 52350_080128-0-000_C3211-87_csau_z_d.pdf
  • Hent Approval: UL Registered CA 52350_E140415-NKCR8_urc_z_b.pdf
  • Hent Approval: UL Registered US 52350_E140415-NKCR2_ur_z_b.pdf
  • Hent Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Hent Information: Certificate of conformity Murrelektronik GmbH 09-11-20_(3) RoHS REACh exception 6c 7cI_DoC_z_a.pdf
  • Hent Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Hent Information: Certificate of conformity UKCA 52350_1425-04.16_uk_z_a.pdf
  • Hent Information: EU declaration of conformity 52350_1425-04.16_ce_z_d.pdf
  • Hent Information: MTTF Report 52350_SN29500(40°C)-BerechnungV1.4_mttf_p_a.pdf

---- Krydsstik til klemrække ----
---- Etiket til klemme ----
  • Label plate Miro
