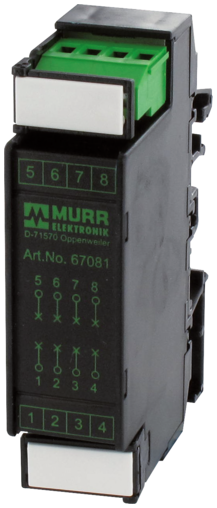

ASSEMBLY MODULE MKS - M 4
Mounting rail / screw-type terminal
| Art. nr.: | 67081 |
| Vægt: | 0.052 kg |
| Country of origin: | CZ |
Tilgængelig
Beskrivelse

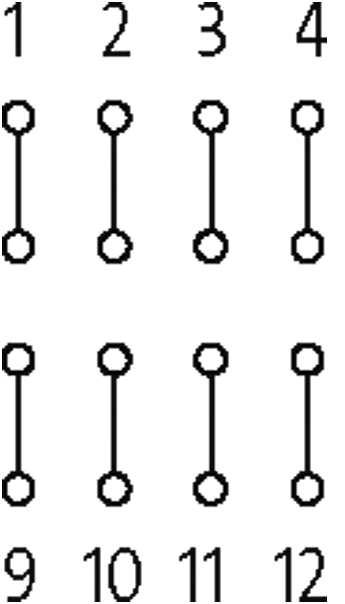

4 pairs of solder pins
screw terminals connected to solder pin pairs
screw terminals connected to solder pin pairs
Tekniske specifikationer
Electrical data | Supply
| Operating voltage AC max. | 250 V |
|---|---|
| Operating voltage DC max. | 250 V |
| Operating current max. | 2,5 A |
Device protection | Media
| Flame resistance | flame retardant |
|---|
Mechanical data | Material data
| Housing properties | removable cover |
|---|---|
| Material housing | Plastic |
Mechanical data | Mounting data
| Distance of solder pins | 30 mm |
|---|---|
| Mounting method | geschnappt |
| Suitable for mounting type | Mounting rail TH35, G32, (EN 60715) |
| Height | 68 mm |
| Width | 22,5 mm |
| Depth | 65 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -20 °C |
|---|---|
| Operating temperature max. | 60 °C |
Tilslutningsdata
Connection type 1
| Connection | Screw terminals SK |
|---|---|
| Family construction form | terminal |
| Gender | female |
| No. of poles | 8 |
Commercial data
| ECLASS-6.0 | 27379201 |
|---|---|
| ECLASS-6.1 | 27141149 |
| ECLASS-7.0 | 27141149 |
| ECLASS-8.0 | 27141149 |
| ECLASS-9.0 | 27141149 |
| ECLASS-10.1 | 27141149 |
| ECLASS-11.1 | 27141149 |
| ECLASS-12.0 | 27141149 |
| ETIM-5.0 | EC002780 |
| customs tariff number | 85369010 |
| GTIN | 4048879041812 |
| Pakke-enhed | 1 |
