MKS - D 10/1300 - 1 DIODE MODULES
Mounting rail / screw-type terminal
Art. nr.: | 67066 |
Vægt: | 0.096 kg |
Country of origin: | CZ |
Ikke på lager - Kontakt os for leveringsdato
Beskrivelse

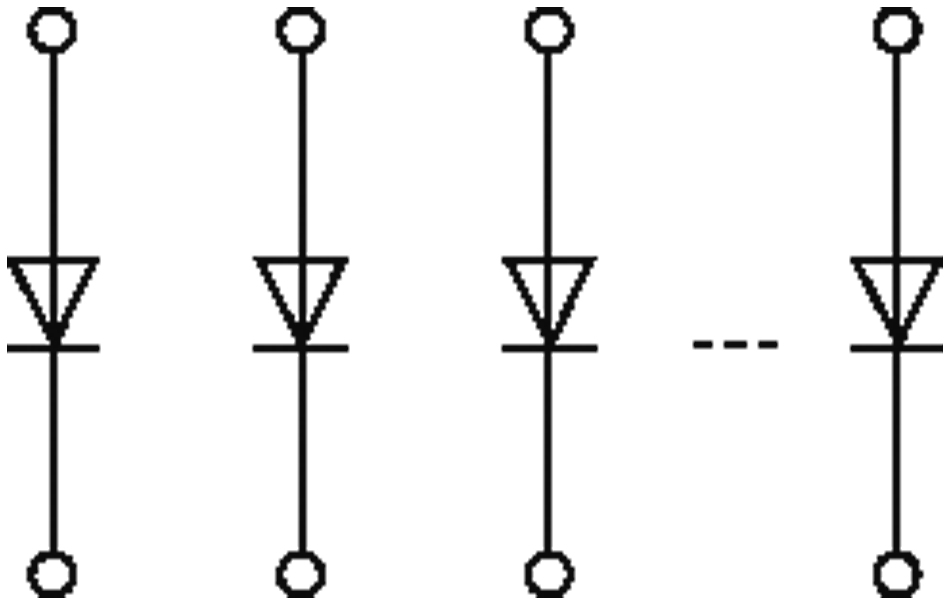

Universal diode 1 300 V, 1 A
10 diodes
separation contact via pluggable jumpers
10 diodes
separation contact via pluggable jumpers


Tekniske specifikationer
Technical Data
Operating voltage | max. 48 V AC/DC |
---|
General data
Mounting method | DIN-rail mountable TH35 or G32 (EN 60715) |
---|---|
Temperature range | -20...+60 °C |
Connection | Screw terminals: max. 4 mm² |
Dimensions H×W×D | 86×45×62 mm |
Description
Functional description | Diode modules are suitable for the suppression of inductive loads (valve, contactor, etc.) |
---|
Product article number of manufacturer | 67066 |
---|
Commercial data
ECLASS-6.0 | 27371010 |
---|---|
ECLASS-6.1 | 27371010 |
ECLASS-7.0 | 27371010 |
ECLASS-8.0 | 27371010 |
ECLASS-9.0 | 27371010 |
ECLASS-10.1 | 27371010 |
ECLASS-11.1 | 27371010 |
ECLASS-12.0 | 27371010 |
ETIM-5.0 | EC002780 |
customs tariff number | 85411000 |
EAN | 4048879041874 |
Pakke-enhed | 1 |
