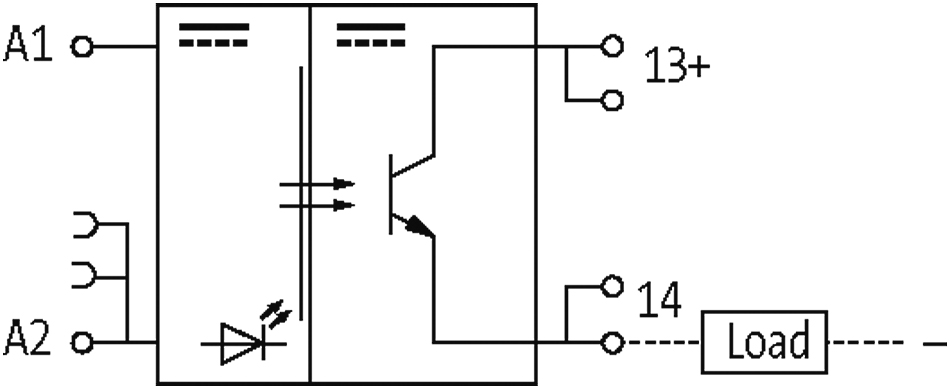

AMMDS 10-44/0,1 OPTO-COUPLER MODULE
IN: 53 VDC - OUT: 40 VDC / 0,1 A
| Art. nr.: | 50081 |
| Alternative varer: | 52515 |
| Vægt: | 0.04 kg |
| Country of origin: | CZ |
Tilgængelig
Beskrivelse
Transistor 0.1 A
24 V DC
with minus plug link
Double terminals on the output side
24 V DC
with minus plug link
Double terminals on the output side
Tekniske specifikationer
General product information
| Jumper (Art-No. 90960) |
Electrical data | Input
| Input voltage OFF DC min. | 0 V |
|---|---|
| Input voltage OFF DC max. | 3 V |
| Input voltage DC min. | 10 V |
| Input voltage DC max. | 53 V |
| Input current | 6 mA |
Electrical data | Output
| Switch off delay max. | 2 ms |
|---|---|
| Switch on delay max. | 1,5 ms |
| Quiescent current OFF max. | 0,3 mA |
| Switching frequency inductive max. | 40 Hz |
| Switching frequency ohmic max. | 300 Hz |
| Voltage switching DC min. | 4 V |
| Switching voltage DC max. | 40 V |
| Current switching min. | 1 mA |
| Switching current max. | 0,1 A |
| Voltage drop DC max. | 1,2 V |
Diagnostics
| Status indication LED | red |
|---|
Device protection | Electrical
| Rated insulation voltage | 3750 V |
|---|
Device protection | Media
| Flame resistance | flame retardant |
|---|
Mechanical data | Material data
| Color housing | black |
|---|---|
| Material housing | Plastic |
Mechanical data | Mounting data
| Mounting method | geschnappt |
|---|---|
| Suitable for mounting type | Mounting rail TH35, (EN 60715), G32 |
| Height | 82 mm |
| Width | 12 mm |
| Depth | 64 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -20 °C |
|---|---|
| Operating temperature max. | 60 °C |
Classifications
| ECLASS-6.0 | 27371604 |
|---|---|
| ECLASS-6.1 | 27371604 |
| ECLASS-7.0 | 27371604 |
| ECLASS-8.0 | 27371604 |
| ECLASS-9.0 | 27371604 |
| ECLASS-10.1 | 27371604 |
| ECLASS-11.1 | 27371604 |
| ECLASS-12.0 | 27371604 |
| ETIM-5.0 | EC001504 |
Commercial data
| customs tariff number | 85414900 |
|---|---|
| GTIN | 4048879027984 |
| Pakke-enhed | 1 |
