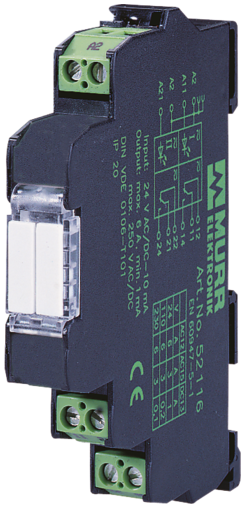

MIRO 12.4 24V-2S OUTPUT RELAY  52106
Produktet kan afvige fra billedet

MIRO 12.4 24V-2S OUTPUT RELAY

IN: 24 VAC/DC - OUT: 250 VAC/DC / 6 A
Art. nr.: 52106
Alternative varer:    6652106
Vægt: 0.05 kg
Country of origin:  CZ
Ikke på lager - Kontakt os for leveringsdato
 Produktsammenligning
Listepris pr. Stk:

Beskrivelse

2 NO contact
6 A
24 V AC/DC
Screw terminals
Certificates as JSON - filtered

General data
Mounting method DIN-rail mountable (EN 60715)
Temperature range -20...+55 °C
Test isolation voltage 4 kV; safe separation (EN 60947-1)
Mech./ elect. life 20 000 000 switching cycles/load dependent
Dimensions H×W×D 90×12.4×70 mm
Output
Min. load current 100 mA (12 V DC)
Contact material Ag Sn O2
Energize/release/contact bounce time 10/15/1.5 ms
Switching voltage max. 250 V AC/DC
Switching frequency max. 10 Hz
Power rating (voltage dependent) max. 1500 VA/120 W
Switching current per output max. 6 A
Input
Connection voltage - current 24 V AC/DC (19.2...30 V AC/DC) - 16 mA
LED display LED (green)
Utilization category
AC-15 3 A (24/110/230 V AC)
AC-12 6 A (24/110/230 V AC)
DC-13 1 A (24 V DC); 0.2 A (110 V DC); 0.1 A (230 V DC)
Article No. 52106

customs tariff number 85364900
EAN 4048879027113
eClass 27371001
Pakke-enhed 1


Oplysninger vedrørende artikel:
  • Hent Datablad
  • Hent Approval: CCC  52106_2020970303000233-27.05.2030_ccc_z_g.pdf
  • Hent Construction files: P8 52106_p8_2_60.zip
  • Hent Construction files: STP 52106_stp_x_a.zip
  • Hent Information: Certificate of conformity Murrelektronik GmbH 20-10.21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Hent Information: Certificate of conformity Murrelektronik GmbH 09-11.20_(3) RoHS&REACh exception 6c&7cI_DoC_z_a.pdf
  • Hent Information: Certificate of conformity Murrelektronik GmbH 17-12.20_(3) China RoHS 2 25EEP_DoC_z_b.pdf
  • Hent Information: EU declaration of conformity 52106_1255-04.16_ce_z_c.pdf
  • Hent Information: MTTF Report 52106_SN29500(40°C)-Berechnung_mttf_p_a.pdf
