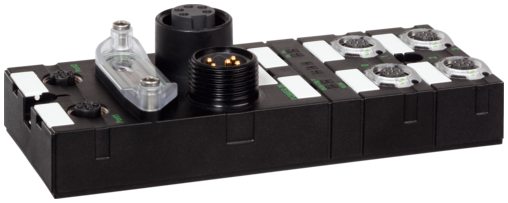

CUBE67+ BUS NODE 56525
Produktet kan afvige fra billedet

CUBE67+ BUS NODE

Ethernet/IP
Art. nr.: 56525
Alternative varer:    56535
Vægt: 0.35 kg
Country of origin:  CZ
Tilgængelig
Find similar Product
Stil et spørgsmål
 Anbefale dette produkt
 Produktsammenligning
Listepris pr. Stk:
Tilføj Easy-Import-Export

Beskrivelse

Cube67+
EtherNet/IP
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
Certificate
Certificate
Certificate
Bus technologies

Electrical data | Supply
Operating voltage DC 24 V
Current consumption max. 200 mA
Total current UA max. 8 A
Total current US max. 8 A
Industrial communication | Ethernet/IP
EtherNet/IP addressing BOOTP, DHCP, Rotary switch
Diagnostics
Diagnostic No voltage, Under voltage
Diagnostic via BUS per module and channel
Diagnostic via LED per module and channel
Short circuit diagnosis yes
LED display Ethernet connection/data traffic
Overload diagnosis yes
Device protection | Electrical
Degree of protection (EN IEC 60529) IP67
Mechanical data
Number extension modules max. 32
Mechanical data | Mounting data
Suitable for mounting type 2-hole screw mounting
Height 151 mm
Width 62 mm
Depth 40,5 mm
Environmental characteristics | Climatic
Operating temperature min. 0 °C
Operating temperature max. 55 °C
Storage temperature min. -20 °C
Storage temperature max. 75 °C
Conformities, approvals, certificates
Product standard EN 61131-2

Connection types
Connection type 1 Internal system connection
Connection type 2 Port1, Port2
Connection type 3 Power In
Connection type 4 Power Out
Connection type 1
Family construction form M12
Gender female
Color contact carrier black
Coding A
No. of poles 6
Connection type 2
Mounting method inserted, screwed
Tightening torque 0,6 Nm
Family construction form M12
Gender female
Color contact carrier black
Coding D
No. of poles 4
Connection type 3
Family construction form 7/8"
Gender male
Color contact carrier black
No. of poles 5
Connection type 4
Family construction form 7/8"
Gender female
Color contact carrier black
No. of poles 5

ECLASS-6.0 27242608
ECLASS-6.1 27242608
ECLASS-7.0 27242608
ECLASS-8.0 27242608
ECLASS-9.0 27242608
ECLASS-10.1 27242608
ECLASS-11.1 27242608
ECLASS-12.0 27242608
ETIM-5.0 EC001604

customs tariff number 85389099
GTIN 4048879313131
Pakke-enhed 1


Oplysninger vedrørende artikel:
  • Hent Produkt-PDF
  • Hent Approval: UL Listed CA 56525_E201820_NRAQ7_ulc_z_b.pdf
  • Hent Approval: UL Listed US 56525_E201820-NRAQ_ul_z_c.pdf
  • Hent Certificate: Ethernet IP  56525_10912-DOC-011411-odva_eip_z_a.pdf
  • Hent Configuration Files: EDS 56525_CUBE67_KF5_13.zip
  • Hent Construction files: DXF 56526_dxf_x_a.zip
  • Hent Construction files: P8 56525_p8_2_50.zip
  • Hent Construction files: STP 56526_stp_x_a.zip
  • Hent Document: Installation guide 56525_ina_6_13.pdf
  • Hent Document: User manual 56974_hdb_x_19.zip
  • Hent Document: User manual 56525_hdb_x_17.zip
  • Hent Document: User manual 10500956_hdb_x_10.zip
  • Hent Information: Certificate of conformity Murrelektronik GmbH 05-02-23_(2) China RoHS 2 20EEP_DoC_z_a.pdf
  • Hent Information: Certificate of conformity Murrelektronik GmbH 13-11-20_(2) RoHS REACh exception 7cI_DoC_z_c.pdf
  • Hent Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Hent Information: Certificate of conformity UKCA 56525_964-04.16_uk_z_a.pdf
  • Hent Information: Diverses Cube67p_BN-E_Offine_Config_v102.xls
  • Hent Information: EU declaration of conformity 56525_964-04.16_ce_z_b.pdf
  • Hent Information: MTTF Report 56525_SN29500(40°C)-BerechnungV1.4_mttf_p_a.pdf
  • Hent Software: Configurator 56525_Cube67p_BNEIP_OfflineConfig_TB6_x_13.zip
  • Hent Software: Configurator 10500956_TB6_x_10.zip
