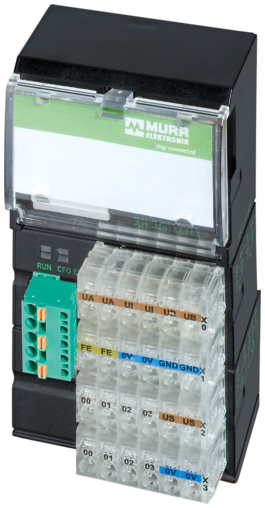

IMPACT20 DEVCIENET, DIGITAL IN-/OUTPUT MODULE

8 digital inputs and 8 digital outputs

ikke tilgængelig

Digital inputs/outputs
DI8 DO8 - 2 A
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.

General data

Module supply

Operating voltage	24 V DC (EN 61131-2)

Output

Total current	max. 8 A
Switching current per output	max. 2 A (short-circuit and overload protected)

Input

Sensor supply US	24 V DC (EN 61131-2), max. 700 mA per module, short-circuit and overload protected
Type	for 3-wire sensors or mechanical switches, PNP

Connections

Fieldbus	DN 125 kbit/s; 250 kbit/s; 500 kbit/s; 5× spring clamp terminals
Sensor-system/actuator supply	6× spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A)
I/O ports	18× spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A)

Product article number of manufacturer	56909

Diagnostic
