MVP12, 8XM12, 5POLE, M23 19POL. CON.

Connector exit frontside
Art. nr.: 27784
Vægt: 0.14 kg
Country of origin:  DE
Ikke på lager - Kontakt os for leveringsdato
 Produktsammenligning
Listepris pr. Stk:
Tilføj Easy-Import-Export

Beskrivelse


8-way, 5-pole
M23 plug connection
19-pole used
with LED for digital PNP-signals 24 V DC
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Certificate
Certificate

Technical Data
Operating voltage 24 V DC
Operating current per contact max. 4 A
Locking of ports Screw thread (M12×1 mm)
Protection IP67 inserted and tightened (EN 60529)
Housing Plastic, flame retardant
Signal per port 2
Total current max. 10 A
General data
Temperature range -20...+80 °C

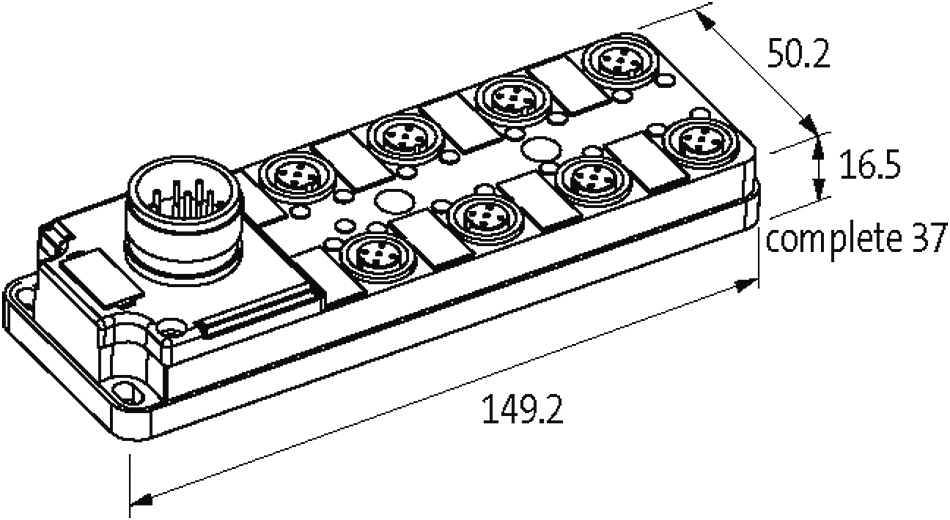

Dimensions H×W×D 149.2×50.2×16.5 mm
Contact Layout
PIN 1 (+)
PIN 2 (NC)/(S2)
PIN 3 (-)
PIN 4 (NO)/(S1)
PIN 5 (Earth)
LED (green): Power / LED (yellow): (S1/S2)

ECLASS-6.0 27279219
ECLASS-6.1 27279219
ECLASS-7.0 27279219
ECLASS-8.0 27279219
ECLASS-9.0 27440108
ECLASS-10.1 27440111
ECLASS-11.1 27440111
ECLASS-12.0 27440111
ETIM-5.0 EC002585
customs tariff number 85369010
EAN 4048879063197
Pakke-enhed 1


Oplysninger vedrørende artikel:
  • Hent Produkt-PDF
  • Hent Approval: UL Listed CA 27784_E201820_NRAQ7_ulc_z_a.pdf
  • Hent Approval: UL Listed US 27784_E201820-NRAQ_ul_z_b.pdf
  • Hent Construction files: DXF 27784_dxf_x_a.zip
  • Hent Construction files: STP 27784_stp_x_a.zip
  • Hent Document: Installation guide 27784_ina_3_14.pdf
  • Hent Information: Certificate of conformity Murrelektronik GmbH 07-11-20_(10) RoHS REACh exception 6c 7a 7cI_DoC_z_a.pdf
  • Hent Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Hent Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Hent Information: EU declaration of conformity 27784_13-05.15_ce_z_a.pdf
  • Hent Information: MTTF Report 27784_SN29500(40°C)-BerechnungV1.4_mttf_p_b.pdf
