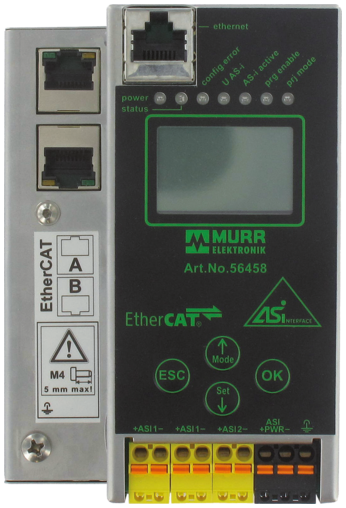

Gateway EtherCAT/AS-i, 2 Masters
Product discontinued since 2023-02-13
| Art. nr.: | 56458 |
| Vægt: | 0.618 kg |
| Country of origin: | DE |
ikke tilgængelig
Beskrivelse
Gateway-Singlemaster
via pluggable spring clamp plug-in terminals on the front 0.5...1.5 mm²
AS-Interface/PROFIBUS DP
Specification 3.0
Current manuals, GSD/type data can be downloaded at: www.murrelektronik.com
Other gateways on request.
via pluggable spring clamp plug-in terminals on the front 0.5...1.5 mm²
AS-Interface/PROFIBUS DP
Specification 3.0
Current manuals, GSD/type data can be downloaded at: www.murrelektronik.com
Other gateways on request.
Tekniske specifikationer
Electrical data
| Rated operating current AS-Interface max. | 70 mA |
|---|
Electrical data | Supply
| Operating voltage DC | 30 V |
|---|
Industrial communication | Bus data
| Automatic baudrate detection | yes |
|---|---|
| Baud rate min. | 9,6 kBaud |
| Baud rate max. | 12 MBaud |
Industrial communication | AS-Interface
| AS-i specification | V3.0 |
|---|---|
| Number of slaves max. | 62 |
| Diagnostic interface serial | PS2/RS232 |
| Cycle time AS-i | 150 µs × (number of slaves + 2) |
Industrial communication | Profibus
| PROFIBUS function | Illustration of AS-Interface slaves as I/O process data in PROFIBUS DP, full diagnostic configuration via DP-master |
|---|
Installation | Connection
| Family construction form | SUB-D9 |
|---|
Device protection | Electrical
| Rated insulation voltage | 500 V |
|---|---|
| Degree of protection (EN IEC 60529) | IP20 |
| Short-circuit protected | yes |
| Overload resistant | yes |
Mechanical data
| Number of operating buttons | 4 |
|---|---|
| Function operating buttons | ESC, Mode, OK, Set |
Mechanical data | Mounting data
| Mounting method | geschnappt |
|---|---|
| Suitable for mounting type | (EN 60715), mounting rail |
| Height | 120 mm |
| Width | 75 mm |
| Depth | 70 mm |
Environmental characteristics | Climatic
| Operating temperature min. | 0 °C |
|---|---|
| Operating temperature max. | 55 °C |
| Storage temperature min. | -20 °C |
| Storage temperature max. | 85 °C |
Conformities, approvals, certificates
| Low Voltage Directive | EN 50295 |
|---|
Classifications
| ECLASS-6.0 | 27242608 |
|---|---|
| ECLASS-6.1 | 27242608 |
| ECLASS-7.0 | 27242608 |
| ECLASS-8.0 | 27242608 |
| ECLASS-9.0 | 27242608 |
| ECLASS-10.1 | 27242608 |
| ECLASS-11.1 | 27242608 |
| ECLASS-12.0 | 27242608 |
| ETIM-5.0 | EC001604 |
Commercial data
| customs tariff number | 85176200 |
|---|---|
| GTIN | 4048879444712 |
| Pakke-enhed | 1 |
