K-Switch 30 S 2NO 1x40SR M12(4)

Keylock switch 1x40° spring return

Tilgængelig

K-Switch 30 S 2NO 1x40SR M12(4)
Schlüsselschalter 1x40° tastend
Frontring stainless steel

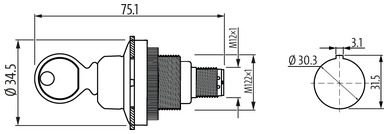

Mounting hole 30,3 mm
Connection M12 (4-pin)

Mechanical protection

UL Enclosure Type Rating - front	type 4X
Mechanical endurance	300000
Mechanical endurance B10	429962

Electrical data

Short-circuit current	1000 A
Short circuit protective device (SCPD)	fuse 250 V / 0.1 A / 1.5 kA gG quick
Switching current	1...100 mA
Rated voltage UL 60947	≤ 30 V AC/DC
Switching voltage	1...32 V
Power rating (voltage dependent)	0,25 W
Rated surge voltage	2500 V
Rated insulation voltage	250 V

Ambient characteristics

Mechanical data

Product article number of manufacturer	69130

Supply

Degree of protection front (EN IEC 60529)	IP65
Degree of protection back (EN IEC 60529)	IP65

Mechanical data

Mechanical data

Installation height	38,8 mm
