Reset button with 1 illuminated push button 69013
Produktet kan afvige fra billedet

Reset button with 1 illuminated push button

1 NO contact in a IP65 enclosure

Art. nr.: 69013
Vægt: 0.106 kg
Country of origin:  DE
Tilgængelig
Find similar Product
Stil et spørgsmål
 Anbefale dette produkt
 Produktsammenligning
Listepris pr. Stk:
Tilføj Easy-Import-Export

Beskrivelse

R-Button / 42 1NO L M12(4)
with M12 connection
4-pole
1 button can be lit (1 NO contact)
Delivery contents:
Flat lens, transparent clear, red, yellow, green, blue
Label plates, O, I, R
mounting with clip on the back side
Certificate
Certificate

Electrical data
Operating voltage AC/DC LED illumination max. 30 V
Operating current LED illumination 14 mA @24 V DC
Electrical data | Output
Utilization category DC-13 (EN IEC 60947-5-1) 2 A @ 24 V
Switching current (AC-15) 15 A
Switching current (DC-13) 2,2 A
Device protection
Condition lifetime load-dependent, temperature dependent
Device protection | Electrical
Degree of protection (EN IEC 60529) IP65
Electrical lifetime 1000000 Cycles
Device protection | Mechanical
Mechanical endurance 1000000 Cycles
Operating life B10d 1000000 Cycles
Mechanical data
Bounce time max. 10 ms
Mechanical data | Material data
Material contact AgNi
Mechanical data | Mounting data
Height 29 mm
Width 124 mm
Depth 42 mm
Environmental characteristics | Climatic
Operating temperature min. -25 °C
Operating temperature max. 70 °C
Storage temperature min. -25 °C
Storage temperature max. 85 °C
Technical Data | Reliability
Lambda normally open contact 50 %

Connection type 1
Family construction form M12

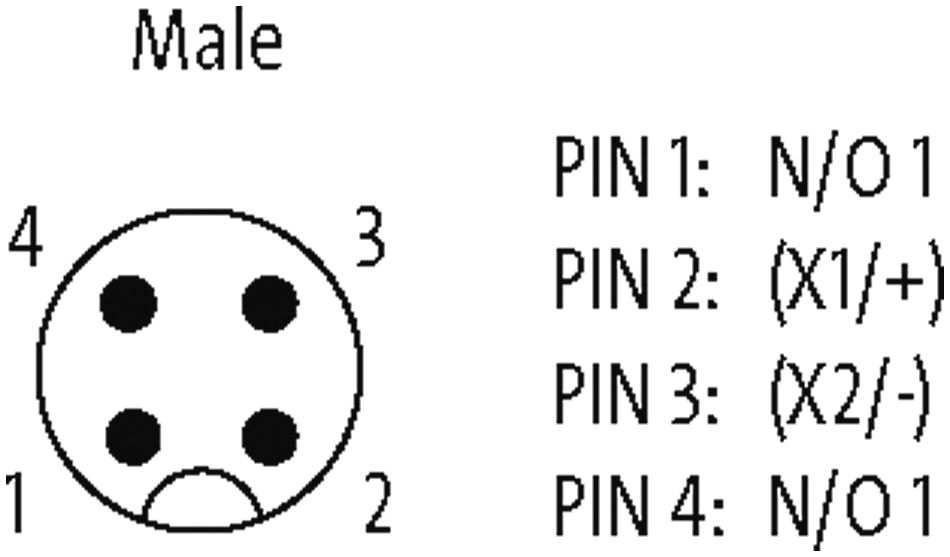

Gender male
Color contact carrier black
Coding A
No. of poles 4
PIN 1 NO
PIN 2 X 1 +
PIN 3 X 2 -
PIN 4 NO

ECLASS-6.0 27371228
ECLASS-6.1 27371228
ECLASS-7.0 27371228
ECLASS-8.0 27371228
ECLASS-9.0 27371228
ECLASS-10.1 27371228
ECLASS-11.1 27371228
ECLASS-12.0 27371228
ETIM-5.0 EC000225
customs tariff number 85365080
GTIN 4048879600507
Pakke-enhed 1


Oplysninger vedrørende artikel:
  • Produkt-PDF
  • Construction files: DXF 69013_dxf_x_a.zip (A)
  • Construction files: P8 69013_p8_2_60.zip (60)
  • Construction files: STP 69013_stp_x_a.zip (A)
  • Document: Installation guide 69010_ina_2_11.zip (11)
  • Information: Certificate of conformity Murrelektronik GmbH 13-11-20_(2) RoHS REACh exception 7cI_DoC_z_c.pdf (02)
  • Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf (01)
  • Information: Certificate of conformity Murrelektronik GmbH 04-02-23_(1) China RoHS 2 e_DoC_z_a.pdf (01)
  • Information: Certificate of conformity UKCA 69013_04-03.22_uk_z_a.pdf (A)
  • Information: EU declaration of conformity 69013_04-03.22_ce_z_b.pdf (B)
