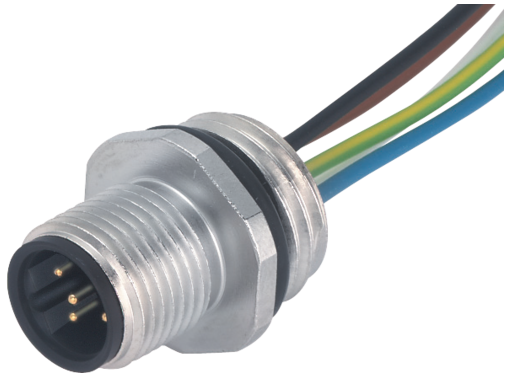

M12 Male recept. B-cod. front 7000-14121-9750020
Product may differ from image

M12 Male recept. B-cod. front

PE-wires 5x0.34 0.2m
Art.No.: 7000-14121-9750020
Weight: 0.016 kg
Country of origin:  DE
Out of Stock - Contact Us for Availability
Find similar Product
Ask question
 Recommend Product
 Product Comparison
List price per piece:

Description


Flange male
M12, 5-pole
B-coded
Front mounting
with multi-strand wire
Further cable lengths on request.
Certificate

Form
Form 14121
Technical Data
Operating voltage max. 125 V AC/DC
Rated surge voltage 1.5 kV
Operating current per contact max. 4 A
No. of poles 5
Material group IEC 60664-1, category I
Coding B-coded
LED display no
Locking of ports Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Protection IP67 inserted and tightened (EN 60529)
Protection NEMA 3, 4, 6P (UL 50E)
Material PUR
Locking material Zinc die casting, matte nickel plated
suitable for corrugated tube (internal Ø) without
Compression gland M12 (SW14)
General data
Standards DIN EN 61076-2-101 (M12)
Mounting method inserted, tightened
Material contact Copper alloy
Material contact surface Au
Pollution Degree 3
Temperature range -25...+85 °C
Cables
No./diameter of wires 5× 0.34 mm²
Wire isolation PUR (br, wh, bl, bk, gnye)
Outer Ø 1.3 mm ±5%
Cable number 975
Material wire Cu wire, tin plated
Resistor (core) max. 58 Ω/km (20 °C)
Nominal voltage 300 V AC
Test voltage 1500 V AC
Temperature range (fixed) -40...+90 °C
Temperature range (mobile) -25...+90 °C
Bend radius (fixed) 5× outer Ø
Product article number of manufacturer 7000-14121-9750020
Cable length 0,2 m

ECLASS-6.0 27279221
ECLASS-7.0 27440104
ECLASS-8.0 27440104
ECLASS-9.0 27440102
ECLASS-10.1 27440103
ECLASS-11.1 27440103
ECLASS-12.0 27440103
ETIM-5.0 EC001855
customs tariff number 85444290
EAN 4048879197762
Packaging unit 1


Data Regarding Article:
  • Download Data Sheet
  • Download Approval: UL Registered US E224242-ECBT2_ur_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 14-11-20_(5) RoHS REACh no exception_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 04-02-23_(1) China RoHS 2 e_DoC_z_a.pdf
