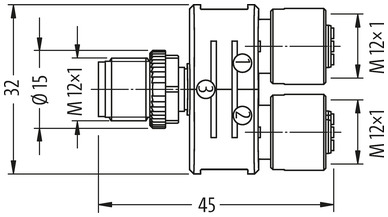

T-Coupler Slimline M12 male / 2x M12 female A-cod.
5-pol. / 2x 4-pol.
| Art.No.: | 7000-41131-0000000 |
| Alternative product: | 7000-41121-0000000 |
| Weight: | 0.029 kg |
| Country of origin: | DE |
Available
Description
T-coupler (Slim Line)
Male straight – females straight
M12 – M12
5-pole
Distribution function (NO)
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Male straight – females straight
M12 – M12
5-pole
Distribution function (NO)
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Technical Data
Technical Data
| Operating voltage | max. 60 V AC/DC |
|---|---|
| Operating voltage (only UL listed) | 30 V AC/DC |
| Rated surge voltage | 1.5 kV |
| Operating current per contact | max. 4 A |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP67 inserted and tightened (EN 60529) |
General data
| Temperature range | -25...+85 °C |
|---|
Commercial data
| ECLASS-6.0 | 27143423 |
|---|---|
| ECLASS-7.0 | 27449001 |
| ECLASS-8.0 | 27449001 |
| ECLASS-9.0 | 27440321 |
| ECLASS-10.1 | 27440106 |
| ECLASS-11.1 | 27440106 |
| ECLASS-12.0 | 27440106 |
| ETIM-5.0 | EC002062 |
| customs tariff number | 85366990 |
| EAN | 4048879144865 |
| Packaging unit | 1 |
