M12 male 0° D-cod. with cable shielded
TPE 2x2x24AWG SF/UTP CAT5e bu UL/CSA. CM 1.5m
| Art.No.: | 7700-14541-S4U0150 |
| Weight: | 0.091 kg |
| Country of origin: | DE |
Out of Stock - Contact Us for Availability
Description
USA
Ethernet CAT5
Male straight
M12, 4-pole
D-coded
shielded
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Technical Data
| Cable length | 1,5 m |
|---|
Technical Data
| Operating voltage | max. 60 V DC |
|---|---|
| Rated surge voltage | 1.5 kV |
| No. of poles | 4 |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Transfer rate | up to 100 Mbit/s full duplex |
| Material group | IEC 60664-1, category I |
General data
| Mounting method | inserted, tightened |
|---|---|
| Pollution Degree | 3 |
| Temperature range | -25...+85 °C, depending on cable quality |
Cable
| Cable identification | S4U |
|---|---|
| Cable weight [g/m] | 55,66 g |
| Material wire | Cu wire, tin plated |
| Construction (core) | 7× 0.203 mm |
| Diameter (core) | 2× 2× 0.25 mm² |
| AWG | similar to AWG 24 |
| Material wire isolation | HDPE |
| Wire-Ø incl. isolation | 1.22 mm ±5% |

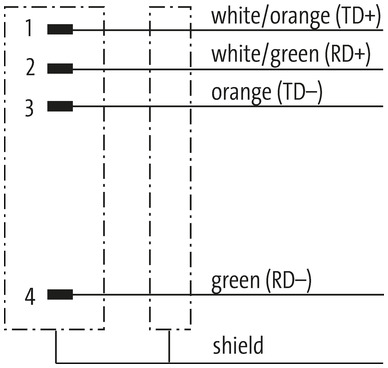

| Color/numbering of wires | (wh-or, or) + (wh-gn, gn) |
| Stranding combination | 2 pairs twisted together |
| Shield | yes |
| Shield (Type) | Copper braid |
| optical shield cover | min. 75% |
| Material jacket | TPE |
| Outer-Ø (jacket) | 6.6 mm ±5% |
| Color jacket | blue |
| Nominal voltage | 1500 V AC |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -40...+80 °C |
| Bend radius (moving) | 10× outer Ø |
| No. of bending cycles (C-track) | max. 35 Mio. (25 °C) |
| Travel speed (C-track) | max. 1.2 m/s |
| Acceleration (C-track) | max. 2.4 m/s² |
| Torsion stress | ±270°/m |
| No. of torsion cycles | max. 3 Mio. (25 °C) |
| Torsion speed | 60 cycles/min |
Commercial data
| ECLASS-6.0 | 27279218 |
|---|---|
| ECLASS-7.0 | 27279218 |
| ECLASS-8.0 | 27279218 |
| ECLASS-9.0 | 27060311 |
| ECLASS-10.1 | 27060307 |
| ECLASS-11.1 | 27060307 |
| ECLASS-12.0 | 27060307 |
| ETIM-5.0 | EC002599 |
| customs tariff number | 85444290 |
| EAN | 4048879581325 |
| Packaging unit | 1 |
