M8 female 0° D-cod. with cable shielded
PUR 1x4xAWG22 shielded gn UL/CSA+drag ch. 5m
| Art.No.: | 7000-09041-7960500 |
| Weight: | 0.358 kg |
| Country of origin: | DE |
Contact Us for Availability
Description

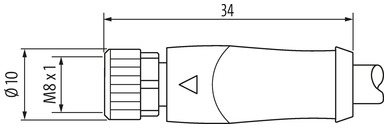

Female straight
M8, 4-pole
D-coded
Shielded
with cable sleeves
Product fulfills requirements according to UN/ECE R118
Good chemical and oil resistance (oil resistance does not apply to use with PVC cable)
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Technical Data
| Cable length | 5 m |
|---|
Side 1
| Tightening torque | 0,4 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M8 |
| suitable for corrugated tube (internal Ø) | 8,5 mm |
| Coding | D |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 4 |
| Width across flats | SW9 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
Side 2
| Coating contact | gold plated |
|---|
Electrical data | Supply
| Operating voltage DC max. | 60 V |
|---|---|
| Current operating per contact max. | 1,5 A |
Industrial communication
| Transfer parameters | CAT5e, Class D (ISO/IEC 11801) |
|---|---|
| Data transmission rate max. | 100 MBit/s |
Installation | Connection
| Mounting set | M8 x 1 |
|---|
Device protection | Electrical
| Pollution Degree | 3 |
|---|---|
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Coating of fitting | nickel plated |
|---|---|
| Material screw connection | Zinc die-casting |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Conformity
| Product standard | DIN EN 61076-2-114 (M8) |
|---|
Cable data
General data | Cable
| Cable identification | 796 |
|---|---|
| Jacket Color | green |
| Type of Certificate | cURus |
Structure | Cable
| Amount stranding | 1 |
|---|---|
| Stranding | 4 wires around Core filler twisted |
| Cable shielding (type) | copper braid, tinned |
| Cable shielding (coverage) | 85 % |
| Banding | Fleece, Foil |
| Filler | yes |

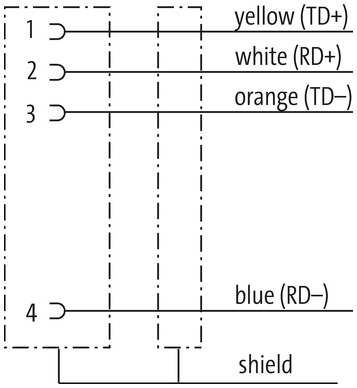

| wire arrangement | white, yellow, blue, orange |
Mechanical data | Cable
| No. of bending cycles (C-track) | 3 Mio. @ 25 °C |
|---|---|
| Cable weigth | 69,3 g/m |
| Material jacket | PUR |
| Shore hardness jacket | 89 Shore A |
| Freedom from ingredients (jacket) | lead-free, cadmium-free, CFC-free, halogen-free, silicone-free |
| Outer-diameter (jacket) | 6,7 mm |
| Tolerance outer diameter (sheath) | ± 5 % |
| Material inner jacket | FRNC |
| Color (inner jacket) | natur |
| Material wire insulation | PE |
| Amount wires | 4 |
| Outer diameter insulation | 1,4 mm |
| Outer diameter tolerance core insulation | ± 5 % |
| Shore hardness wire insulation | 65 Shore D |
| Ingredient freeness wire insulation | lead-free, CFC-free, halogen-free |
| Amount strands (wire) | 7 |
| Diameter of single wires | 22 AWG |
| Conductor crosssection (wire) | 22 AWG |
| Material conductor wire | Stranded copper wire, bare |
| Traversing distance (C-track) | 5 m @ 25 °C |
Electrical data | Cable
| Current load capacity (standard) | to DIN VDE 0298-4 |
|---|---|
| Current load capacity min. wire | 4,8 A |
| Characteristic impedance | 100 Ω ± 15 % @ 100 MHz |
| Electrical resistance line constant wire | 55 Ω/km @ 20 °C |
| Loop resistance | 5000 MΩ × km |
| Nominal voltage power AC max. | 300 V |
| Electrical capacity line constant (wire - wire) (power) | 50000 pF/km |
| AC withstand voltage power (wire - shield) | 2 kV @ 60 s |
| Power frequency withstand voltage power (wire - jacket) | 2 kV @ 60 s |
| AC withstand voltage power (wire - wire) | 2 kV @ 60 s |
Temperature range | Cable
| Min. operating temperature (static) | -40 °C |
|---|---|
| Max. operating temperature (fixed) | 80 °C |
| Operating temperature min. (dynamic) | -30 °C |
| Operating temperature max. (dynamic) | 70 °C |
Resistances | Cable
| Flame resistance | IEC 60332-2-2 | UL 1581 § 1090 | UL 1581 § 1100 FT2 |
|---|---|
| chemical resistance | Good, application-related testing |
| Gasoline resistance | Good, application-related testing |
| Oil resistance | DIN EN 60811-404 | Good, application-related testing |
Installation | Cable
| Bending radius (fixed) | 5 x Outer diameter |
|---|---|
| Bending radius (dynamic) | 12 x Outer diameter |
| No. of torsion cycles | 1 Mio. 25 °C |
| Torsion stress | ± 180 °/m |
Commercial data
| ECLASS-6.0 | 27279218 |
|---|---|
| ECLASS-6.1 | 27060307 |
| ECLASS-7.0 | 27060307 |
| ECLASS-8.0 | 27060307 |
| ECLASS-9.0 | 27060307 |
| ECLASS-10.1 | 27060307 |
| ECLASS-11.1 | 27060307 |
| ECLASS-12.0 | 27060307 |
| ETIM-5.0 | EC001855 |
| customs tariff number | 85444290 |
| GTIN | 4048879853040 |
| Packaging unit | 1 |
