AMS 3-10/44-2 OPTO-COUPLER MODULE  50043
Product may differ from image


IN: 53 VDC - OUT: 35 VDC / 2 A
Art.No.: 50043
Alternative product:    50015
Weight: 0.094 kg
Country of origin:  CZ
 Product Comparison
List price per piece:
Download to Easy-Import-Export

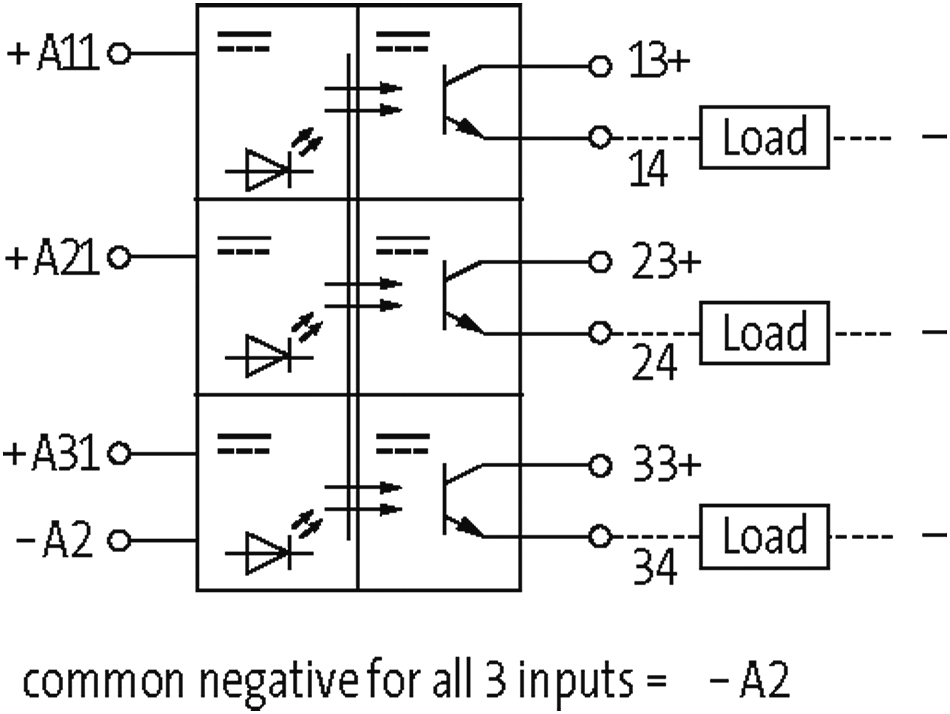

Transistor 2 A (3-way)
3 NO contacts
24 V DC
Control voltage 230 V AC on request

Electrical data | Input
Input voltage OFF DC min. 0 V
Input voltage OFF DC max. 3 V
Input voltage DC min. 10 V
Input voltage DC max. 53 V
Input current 10 mA
Electrical data | Output
Short-circuit protected yes
Switch off delay max. 15 ms
Switch on delay max. 2 ms
Quiescent current OFF max. 0,3 mA
Switching frequency inductive max. 1 Hz
Switching frequency ohmic max. 10 Hz
Voltage switching DC min. 4,5 V
Switching voltage DC max. 35 V
Current switching min. 10 mA
Switching current max. 2 A
Voltage drop DC max. 0,5 V
Status indication LED red
Device protection | Electrical
Rated surge voltage 2,5 kV
Device protection | Media
Flame resistance flame retardant
Mechanical data | Material data
Color housing black
Material housing Plastic
Mechanical data | Mounting data
Mounting method geschnappt
Suitable for mounting type Mounting rail TH35, (EN 60715), G32
Height 75 mm
Width 22,5 mm
Depth 85 mm
Environmental characteristics | Climatic
Operating temperature min. -20 °C
Operating temperature max. 60 °C

ECLASS-6.0 27371604
ECLASS-6.1 27371604
ECLASS-7.0 27371604
ECLASS-8.0 27371604
ECLASS-9.0 27371604
ECLASS-10.1 27371604
ECLASS-11.1 27371604
ECLASS-12.0 27371604
ETIM-5.0 EC001504

customs tariff number 85414900
GTIN 4048879028035
Packaging unit 1

Data Regarding Article:
  • Download Product-PDF
  • Download Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 09-11-20_(3) RoHS REACh exception 6c 7cI_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity UKCA 50043_1509-04.16_uk_z_a.pdf
  • Download Information: EU declaration of conformity 50043_1509-04.16_ce_z_b.pdf
  • Download Information: MTTF Report 50043_SN29500(40°C)-BerechnungV1.4_mttf_p_a.pdf
