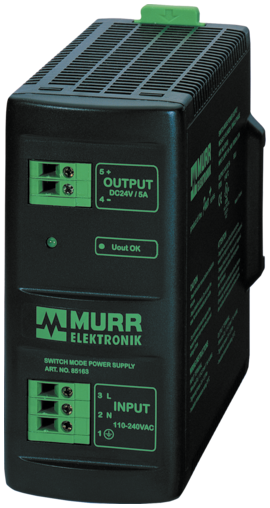

MCS-B POWER SUPPLY 1-PHASE, 85163
Product may differ from image

MCS-B POWER SUPPLY 1-PHASE,

IN: 100-265VAC OUT: 24V/5ADC
Art.No.: 85163
Weight: 0.622 kg
Country of origin:  CZ
Available
Find similar Product
Ask question
 Recommend Product
 Product Comparison
List price per piece:

Description

INPUT: 100...265 V AC
OUTPUT: 24 V DC +3/-1%
Current: 5 A
Certificate
Certificate
Certificate
Certificate
Certificate

General data
Standards IEC 61010-2-201, EN 61204-3, EN 55011 A
Mounting method DIN-rail mountable TH35 (EN 60715)
Temperature range -25...+40 °C, ...+50 °C derating (storage temperature -25...+85 °C)
Relative humidity 5...95%, no condensation
Efficiency 86% (115 V AC); 87% (230 V AC)
Dimensions H×W×D 115×62×125 mm
Output
Output voltage 24 V DC (SELV), ±1%; 22...28 V adjustable
LED display LED (green) for output voltage
Output current 5 A (+40 °C); 4 A (+55 °C)
Mains failure bridging time min. 10 ms (110 V AC); min. 80 ms (230 V AC)
Ripple max. 20 mV eff/rms
Spikes max. 100 mV ss/pp
Unit protection short-circuit and overload protected
Parallel usage/serial usage max. 5 units/max. 2 units
Input
Input voltage 100...265 V AC
Primary fusing external max. 10 A
Input current 2 A (110 V AC); 1.16 A (230 V AC)
Inrush current after 1 ms max. 30 A
Frequency 50...60 Hz
Product article number of manufacturer 85163

ECLASS-6.0 27049002
ECLASS-6.1 27049002
ECLASS-7.0 27049002
ECLASS-8.0 27049002
ECLASS-9.0 27040701
ECLASS-10.1 27040701
ECLASS-11.1 27040701
ECLASS-12.0 27040701
ETIM-5.0 EC002540
customs tariff number 85044095
EAN 4048879080378
Packaging unit 1


Data Regarding Article:
  • Download Data Sheet
  • Download Approval: UL Listed CA 85163_E222272-NMTR7_ulc_z_a.pdf
  • Download Approval: UL Listed US 85163_E222272-NMTR_ul_z_b.pdf
  • Download Approval: UL Registered CA 85163_E213413-QQGQ8_urc_z_b.pdf
  • Download Approval: UL Registered US 85163_E213413-QQGQ2_ur_z_b.pdf
  • Download Certificate: GL  85163_TAA00002EK-2024.07.17-DNVGL_gl_z_d.pdf
  • Download Construction files: DXF 85163_dxf_x_a.zip
  • Download Construction files: P8 85163_p8_2_20.zip
  • Download Construction files: STP 85163_stp_x_a.zip
  • Download Document: Installation guide 85163_INA_4_20.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 05-02-23_(2) China RoHS 2 20EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 11-11-20_(7) RoHS REACh exception 7a 7cI_DoC_z_a.pdf
  • Download Information: Certificate of conformity UKCA 85163_24-10.20_uk_z_a.pdf
  • Download Information: EU declaration of conformity 85163_24-10.20_ce_z_d.pdf
  • Download Information: MTBF Report 85163_SN29500(40°C)-BerechnungV1.4_mtbf_p_a.pdf
