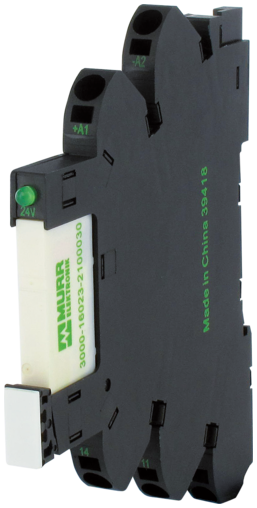

MIRO 6.2 PLUGGABLE COMPL.MODULE INPUT RELAY  3000-16013-3100040
Product may differ from image

MIRO 6.2 PLUGGABLE COMPL.MODULE INPUT RELAY

IN: 24 VAC/DC - OUT: 250 VAC/30VDC / 6 A
Art.No.: 3000-16013-3100040
Alternative product:    6652003
Weight: 0.032 kg
Country of origin:  CN
Available
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

1 NO/NC contact
6 A
24 V AC/DC
Spring clamp terminals
Certificate
Certificate
Certificate
Certificate
Certificate

Input
Connection voltage - current 24 V AC/DC (19.2...26.8 V AC/DC) - 14 mA
LED display LED (green)
Output
Min. load current 10 mA
Contact material Ag Sn O2, gold plated
Energize/release/contact bounce time 8/4/- ms
Switching voltage max. 250 V AC/30 V DC
Switching frequency max. 10 Hz
Power rating (voltage dependent) max. 1500 VA/180 W
Switching current per output max. 6 A
General data
Mounting method DIN-rail mountable (EN 60715)
Temperature range -25...+60 °C
Test isolation voltage 250 V
Mech./ elect. life 10 000 000 switching cycles (NO) 30 000; (NC) 10 000, load dependent
Protection IP20
Dimensions H×W×D 93×6.2×75.6 mm
Utilization category
AC-15 3 A (24/110 V AC); 1.5 A (230 V AC)
AC-12 6 A (24/110/230 V AC)
DC-13 1 A (24 V DC); 0.2 A (110 V DC); 0.1 A (230 V DC)

ECLASS-6.0 27371601
ECLASS-6.1 27371601
ECLASS-7.0 27371601
ECLASS-8.0 27371601
ECLASS-9.0 27371601
ECLASS-10.1 27371601
ECLASS-11.1 27371601
ECLASS-12.0 27371601
ETIM-5.0 EC001437
customs tariff number 85364900
EAN 4048879021401
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Approval: CSA CA 3000-16013-3100040_237633_C3211-07_csa_z_a.pdf
  • Download Approval: CSA US 3000-16013-3100040_237633_C3211-87_csau_z_a.pdf
  • Download Approval: UL Registered CA 3000-16013-3100040_E140415-NKCR8_urc_z_c.pdf
  • Download Approval: UL Registered US 3000-16013-3100040_E140415-NKCR2_ur_z_c.pdf
  • Download Construction files: DXF 3000-16013-3100020_dxf_x_b.zip
  • Download Construction files: P8 3000-16013-3100040_p8_2_50.zip
  • Download Construction files: STP 3000-16013-3100020_stp_x_b.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 09-11-20_(3) RoHS REACh exception 6c 7cI_DoC_z_a.pdf
  • Download Information: Certificate of conformity UKCA 3000-16013-3100040_1330-04.16_uk_z_a.pdf
  • Download Information: EU declaration of conformity 3000-16013-3100040_1330-04.16_ce_z_e.pdf
