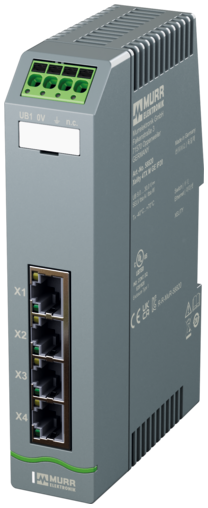

Xelity 4TX managed switch 4 port 1000Mbit ProfiNet IP20

Art.No.:	58821
Weight:	0.162 kg
Country of origin:	DE

Available

Find similar Product

Ask question

Recommend Product

Product Comparison

Description

The Xelity product range is intended for use in industrial environments. The switches have TX ports for twisted pair cables

Connection cables are in the online shop under "Connection Technology".

Technical Data

Operating voltage	24 V DC (9...30 V DC)
Transfer rate	10/100 Mbit/s full duplex
Over voltage protection	yes
Current consumption (Idle)	110 mA, +/- 25 %
Current consumption	max. 300 mA
Operating modes	Autocrossing Autonegotiation
Invers-polarity protection	yes
Input current	2.8 W

General data

Mounting method	DIN-rail mountable TH35 (EN 60715)
Transport temperature range	-40...+85 °C
Housing	Gray plastic
Relative humidity	5...95%, no condensation
Protection	IP20
Dimensions H×W×D	140×30×85,1 mm

Connections

Fieldbus	4xRJ45
Supply	Push-In spring clamp terminals, 0.2...2.5 mm² (0.25...1.5 mm²)

PROFINET

Specification	V2.4, Conformance Class B
Addressing	DCP
FSU (Fast-Start-Up)	no
PROFINET Netload Class	III
MRP	Client
Shared Device	no

Switch Management

Protocols	DHCP, SNMP (v1, v2c, v3), RSTP, STP, LLDP, NTP, RMON, SSH (CLI)
Port Mirroring	yes
VLAN (QoS) IEEE 802.p	yes
Alarm contact	yes
Remote maintenance	Open VPN
Webserver	HTTP, HTTPS
Switch Form	PROFINET - Managed Switch
VLAN (802.1Q)	≤64 VLANs

Product article number of manufacturer	58821

Diagnostic

Communication status	via LED, LLDP
Monitoring - no voltage	yes

Commercial data

ECLASS-6.1	19170106
ECLASS-7.0	19170106
ECLASS-8.0	19170106
ECLASS-9.0	19170401
ECLASS-10.1	19170401
ECLASS-11.1	19170401
ECLASS-12.0	19170401
customs tariff number	85176200
EAN	4065909004678
Packaging unit	1
