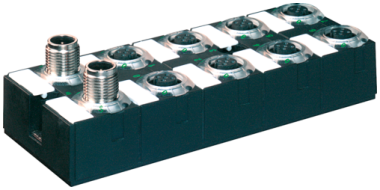

CUBE67 I/O COMPACT MODULE
16 multifunction channels
| Art.No.: | 56600 |
| Alternative product: | 56601 |
| Weight: | 0.21 kg |
| Country of origin: | CZ |
Available
Description
Compact module
DIO16 - 0.5 A (C) - 8× M12
short-circuit and overload protected
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
DIO16 - 0.5 A (C) - 8× M12
short-circuit and overload protected
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
Technical Data
Electrical data
| Terminating resistor | integrated |
|---|
Electrical data | Supply
| Total current UA PowerIN max. | 4 A |
|---|---|
| Norm operating voltage | EN 61131-2 |
| Operating voltage US DC | 24 V |
| Operating voltage UA DC | 24 V |
| Current consumption max. | 50 mA |
| Total current UA max. | 4 A |
| Total current US max. | 4 A |
Electrical data | Input
| Overload resistant | yes |
|---|---|
| Short-circuit protected | yes |
| Type input | PNP, for 3-wire sensors or mechanical switches |
| Input filter time | 1 ms |
| Sensor current US per input max. | 0,2 A |
Electrical data | Output
| Overload resistant | yes |
|---|---|
| Short-circuit protected | yes |
| Output current per pin max. | 0,5 A |
| Lamp load | 10 W |
Diagnostics
| Actuator warning | per channel via LED and BUS |
|---|---|
| Diagnostic | No voltage, Under voltage |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| Short circuit diagnosis | yes |
| LED display | Ethernet connection/data traffic |
| Overload diagnosis | yes |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67 |
|---|
Mechanical data | Mounting data
| Suitable for mounting type | 2-hole screw mounting |
|---|---|
| Height | 126 mm |
| Width | 50 mm |
| Depth | 34,5 mm |
Environmental characteristics | Climatic
| Operating temperature min. | 0 °C |
|---|---|
| Operating temperature max. | 55 °C |
| Storage temperature min. | -20 °C |
| Storage temperature max. | 75 °C |
Connection data
Connection types
| Connection type 1 | 0-7 |
|---|---|
| Connection type 2 | Bus In |
| Connection type 3 | Bus Out |
Connection type 1
| Family construction form | M12 |
|---|---|
| Gender | female |
| Color contact carrier | black |
| Coding | A |
| No. of poles | 5 |
Connection type 2
| Family construction form | M12 |
|---|---|
| Gender | male |
| Color contact carrier | black |
| Coding | A |
| No. of poles | 6 |
Connection type 3
| Family construction form | M12 |
|---|---|
| Gender | female |
| Color contact carrier | black |
| Coding | A |
| No. of poles | 6 |
Classifications
| ECLASS-6.0 | 27242604 |
|---|---|
| ECLASS-6.1 | 27242604 |
| ECLASS-7.0 | 27242604 |
| ECLASS-8.0 | 27242604 |
| ECLASS-9.0 | 27242604 |
| ECLASS-10.1 | 27242604 |
| ECLASS-11.1 | 27242604 |
| ECLASS-12.0 | 27242604 |
| ETIM-5.0 | EC001599 |
Commercial data
| customs tariff number | 85389099 |
|---|---|
| GTIN | 4048879048606 |
| Packaging unit | 1 |
Accessories
-
