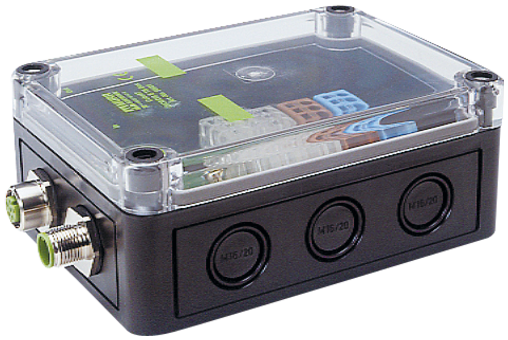

TERMINAL MODULE CUBE 67 IP67  56681
Product may differ from image

TERMINAL MODULE CUBE 67 IP67

8 digital inputs, 8 multifunction channels
Art.No.: 56681
Weight: 0.28 kg
Country of origin:  CZ
Out of Stock - Contact Us for Availability
 Product Comparison
List price per piece:

Description

Terminal module
DIO8/DI8 - (E) TB-Box
Connection cables are in the online shop under "Connection Technology".

General data
Mounting method screw fixing
Temperature range 0...+55 °C (storage temperature -20...+75 °C)
Protection IP66
Dimensions H×W×D 130×94×57 mm
Output
Lamp load 10 W
Actuator supply UA 24 V DC (EN 61131-2), via system connection (max. 4 A)
Switching current per output max. 0.5 A (short-circuit and overload protected)
Input
Sensor supply US 24 V DC (EN 61131-2), max. 8× 200 mA
Type for 3-wire sensors or mechanical switches, PNP
Input filter 1 ms
Internal communication
LED display US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK)
Current consumption max. 50 mA
Parameterization
Terminal row X1 (8 channels) Input/Output
Terminal row X0 (8 channels) Input
Connections
Fieldbus via internal system connection
Sensor-system/actuator supply via internal system connection (max. 2× 4 A)
I/O ports 16× spring clamp plug-in terminals, max. 2.5 mm²
Product article number of manufacturer 56681
Diagnostic
Communication status via LED
Diagnostic via LED per module and channel
Diagnostic via BUS per module and channel
Actuator warning per channel via LED and BUS
Monitoring - under voltage yes
Monitoring - no voltage yes
Short-circuit and overload yes

ECLASS-6.0 27242604
ECLASS-6.1 27242604
ECLASS-7.0 27242604
ECLASS-8.0 27242604
ECLASS-9.0 27242604
ECLASS-10.1 27242604
ECLASS-11.1 27242604
ECLASS-12.0 27242604
ETIM-5.0 EC001599
customs tariff number 85389099
EAN 4048879048293
Packaging unit 1
