Emergency stop with 2 positive opening 69000
Product may differ from image

Emergency stop with 2 positive opening

contacts in a 42mm enclosure
Art.No.: 69000
Weight: 0.111 kg
Country of origin:  DE
Available
Find similar Product
Ask question
 Recommend Product
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

E-Stop 42 2NC M12(4)
with M12 connection
4-pole
Emergency-Stop button
2 NC (positively-opening)
Certificate
Certificate
Certificate

Technical Data
Contact bounce time max. 10 ms
Switching capacity 15 A (AC 15); 2.2 A (DC 13)
General data
Mounting method with clip on back
Material contact Ag Ni
Temperature range -25...+70 °C (storage temperature -25...+85 °C)
Lambda (d) 20% (N/C)
B10d 250 000
Mech./ elect. life 50 000 actuations, load-temperature dependent
Protection IP65
Connection M12 (4-pole)

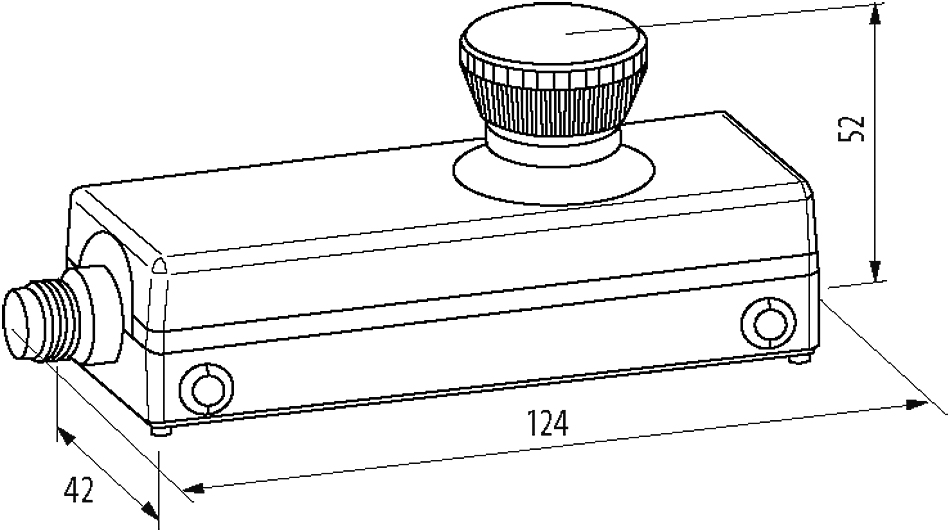

Dimensions H×W×D 52×124×42 mm
Contact Layout
PIN 1 N/C 1
PIN 2 N/C 1
PIN 3 N/C 2
PIN 4 N/C 2
Utilization category
AC-15 1.5 A (240 V AC)
DC-13 2 A (24 V DC)

ECLASS-6.0 27371244
ECLASS-6.1 27371244
ECLASS-7.0 27371244
ECLASS-8.0 27371244
ECLASS-9.0 27371244
ECLASS-10.1 27371244
ECLASS-11.1 27371244
ECLASS-12.0 27371244
ETIM-5.0 EC002034
customs tariff number 85365080
EAN 4048879594097
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Approval: UL Registered US 69000_E479949-NISD2_ur_z_b.pdf
  • Download Certificate: TÜV  69000_B0318910009-09.02.2025_tuev_z_c.pdf
  • Download Construction files: DXF 69000_dxf_x_a.zip
  • Download Construction files: P8 69000_p8_2_51.zip
  • Download Construction files: STP 69000_stp_x_a.zip
  • Download Document: Installation guide 69000_ina_2_12.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 04-02-23_(1) China RoHS 2 e_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 14-11-20_(5) RoHS REACh no exception_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity UKCA 69000_06-03.22_uk_z_a.pdf
  • Download Information: EU declaration of conformity 69000_06-03.22_ce_z_c.pdf
  • Download Information: Safety Codes 69000_SYSTEMA_TB9_x_22.zip
